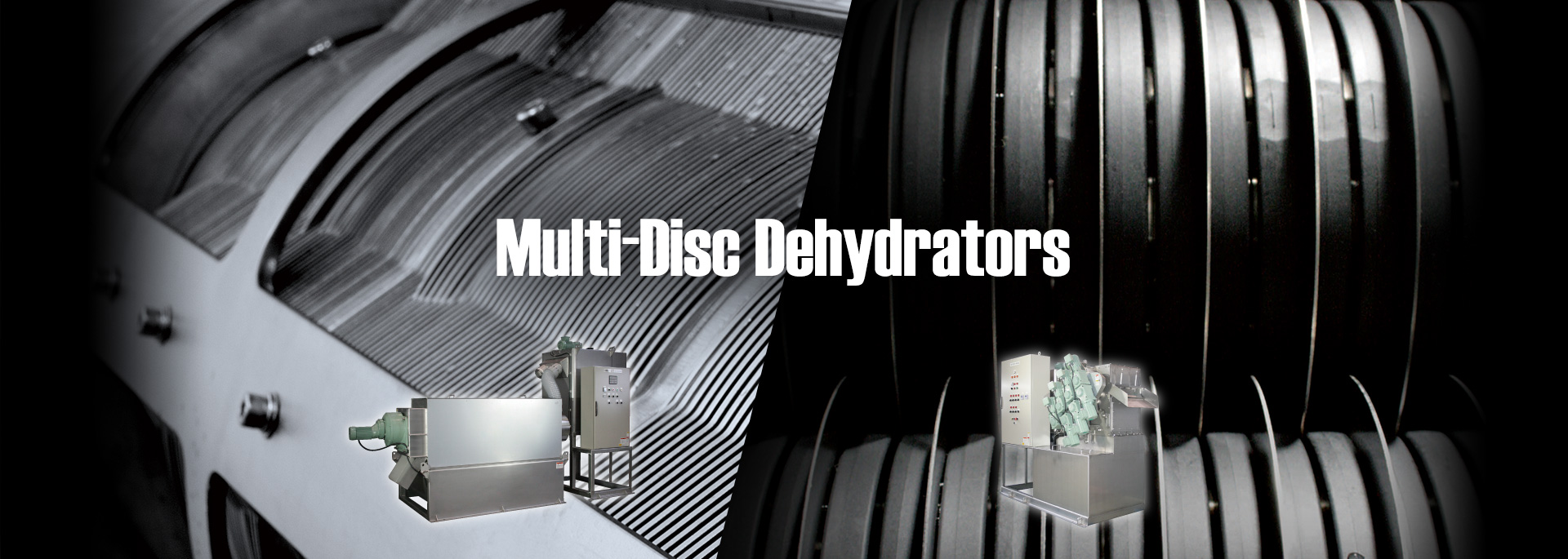

Multi-Disc Dehydrators

Tsurumi's dehydrators feature unitized construction that integrates all necessary accessories, and can be more easily installed and are very compact compared with belt presses and centrifugal dehydrators. The dehydrators boast lower noise, reduced energy consumption, and require less water for flushing, thus providing an economical and eco-friendly solution to dehydration applications.

Catalogue Download

  • Multi-Disc Screw Press Dehydrators

    MDQ/MDC

    Multi-disc screw press dehydrators utilize both gravity filtration and screw displacement compression systems. The pitches of the screw blades are gradually narrower toward the cake outlet in order to reduce the volume of cake, so the coagulated sludge that has been concentrated by gravity filtration is dehydrated by compression.
    The dehydrator main unit requires lower motor output and the filtration surface consists of a multiplicity of self-cleaning capable discs, and seldom clogs. Thus, the dehydrator can be used continuously. The main unit of the dehydrator is of multi-shaft design.
    Therefore, when two or more main units are configured into one machine, any individual shaft can be repaired or serviced without interrupting dehydration operations.
    Multi-disc screw press dehydrators can cope with a wide range of sludge concentrations, and also stably dehydrate sludge that contains high oil content.

    Movie

    Multi-Disc Screw Press Dehydrators MDQ/MDC

  • Multi-Disc Dehydrators

    JD

    Multi-disc dehydrators utilize both gravity filtration and compression dehydration systems.
    The "filtering rollers" consist of alternating thin metal discs and resin discs, and are arranged in two (upper and lower) tiers. The coagulated sludge is fed between the rollers and dehydrated by compression while being conveyed toward the sludge outlet by the rotating action of the rollers.
    The dehydrator main unit requires lower motor output and the filtration surface consists of a ultiplicity of self-cleaning capable discs, and never clogs. Thus, the dehydrator can be used continuously.
    Multi-disc dehydrators can cope with a wide range of sludge concentrations, and also stably dehydrate sludge that contains high oil content or organic sludge that contains high quantities of inorganic substances.

    Movie

    Multi-Disc Dehydrators JD

Applications

  • Excess sludge from biological processes
  • DAF froth
  • Various types of mixed sludge
  • Coagulated sludge
  • Excess Sludge at Industrial Plant
    (MDQ-202)

  • Mixed Sludge at Dairy Product Plant
    (MDQ-203)

  • Excess Sludge at Wastewater Treatment Plant
    (MDQ-205 x 2)

  • Mixed Sludge at Industrial Waste Treatment Facility
    (JD-500)

  • Mixed Sludge at Confectionary Plant
    (JD-500)

  • Excess Sludge at Noodle Production Plant
    (JD-1000)

Supply Record of JD-series Dehydrators in Livestock Breeding Field

Criteria for Selecting a Model

Comparison in Terms of Energy Consumption / Amount of Flush Water

Comparison in Terms of Energy Consumption
(1kgDS/h)

  • MDQ-103: Treating Capacity 18kgDS/h, Total Motor Output 1.0kW
  • Belt Press: Treating Capacity 15kgDS/h, Total Motor Output 1.42kW
  • Centrifugal Separation: Treating Capacity 20kgDS/h, Total Motor Output 7.4kW

Comparison in Terms of Amount of Flush Water
(8-hour operation)

  • MDQ-103: Treating Capacity 18kgDS/h, Flush Water 48L/h
  • Belt Press: Treating Capacity 15kgDS/h, Flush Water 840L/h
  • Centrifugal Separation: Treating Capacity 15kgDS/h, Flush Water 60L/h
